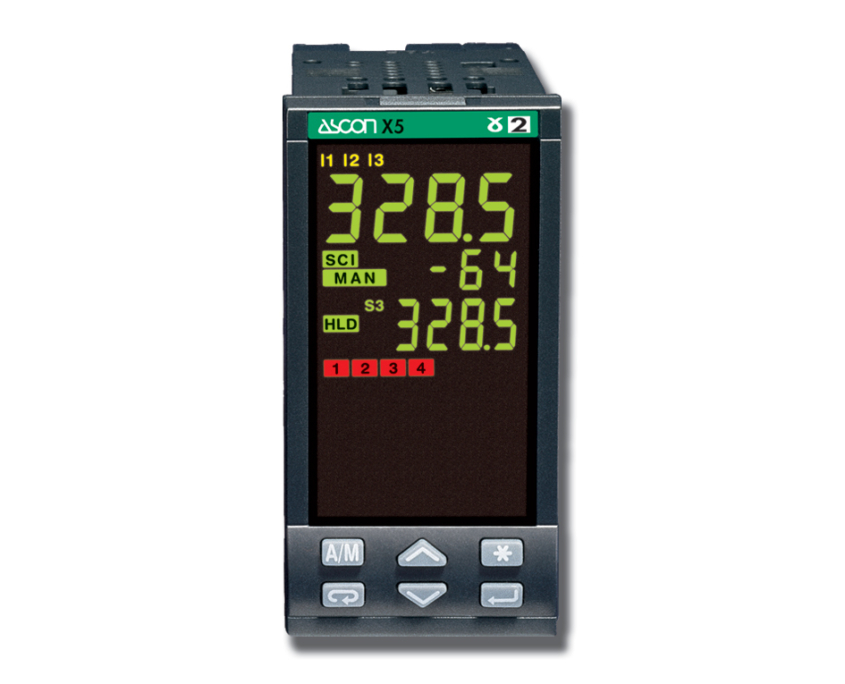

 X5
Process controller with PROFIBUS DP and Modbus Master/Slave
All that is needed to interface with the outside world.
With its three different types of serial communication:
• PROFIBUS DP Slave
• Modbus Master
• Modbus Slave
the X5 line of the gammadue series is able to interface, at different levels, with other equipment, exchanging information after having been processed with the mathematical package.
The frequency input in addition to the traditional inputs, the two continuous regulation or retransmission outputs and the four Set Point profiles make it flexible to use in the most varied control strategies.

Technical specifications

FUNCTION	Controller
DIMENSIONS	48 x 96 mm
DISPLAY	3 display
POWER SUPPLY	24 Vac/Vdc, 100… 240 Vac
INPUTS	Potentiometer, Remote Set point
NUMBER OF OUTPUTS	1, 2, 3, 4, 5, 6
OUTPUTS	0/1… 5 V, 0/2… 10 V, 0/4… 20 mA, Relay and/or SSR control, Servomotor
DIGITAL INPUTS	1, 2, 3
AUXILIARY INPUT	Potentiometer, Remote Set point
NUMBER OF PROGRAMS / SEGMENTS	1 program with 16 segments, 1 program with 8 segments, 4 programs with 16 segments
RETRANSMISSION OUTPUT	0/1… 5 V, 0/2… 10 V, 0/4… 20 mA
INTERFACE	Profibus, RS 232 Modbus Slave, RS 485 Modbus Master, RS 485 Modbus Slave
SPECIAL FUNCTIONS	Mathematical functions, Soft start, Transmitter power supply
CONTROL	Double action with 2 PID, ON/OFF and PID single or double action, Servomotor
EXTRACTABILITY	By the front
MATHEMATICAL PACKAGE	Yes
PROFIBUS DP	Yes
CERTIFICATIONS	CE, UL
