SL1-AC-PD. SL1-AKC-PD. SL1-AVC-PD. SL1-AKVC-PD. Boot seal roller plunger. SL1-BC-PD. SL1-BKC-PD. SL1-BVC-PD. SL1-BKVC-PD. Cross roller plunger. SL1-DC-PD

SL1-AC

SKU SL1-AC

Availability

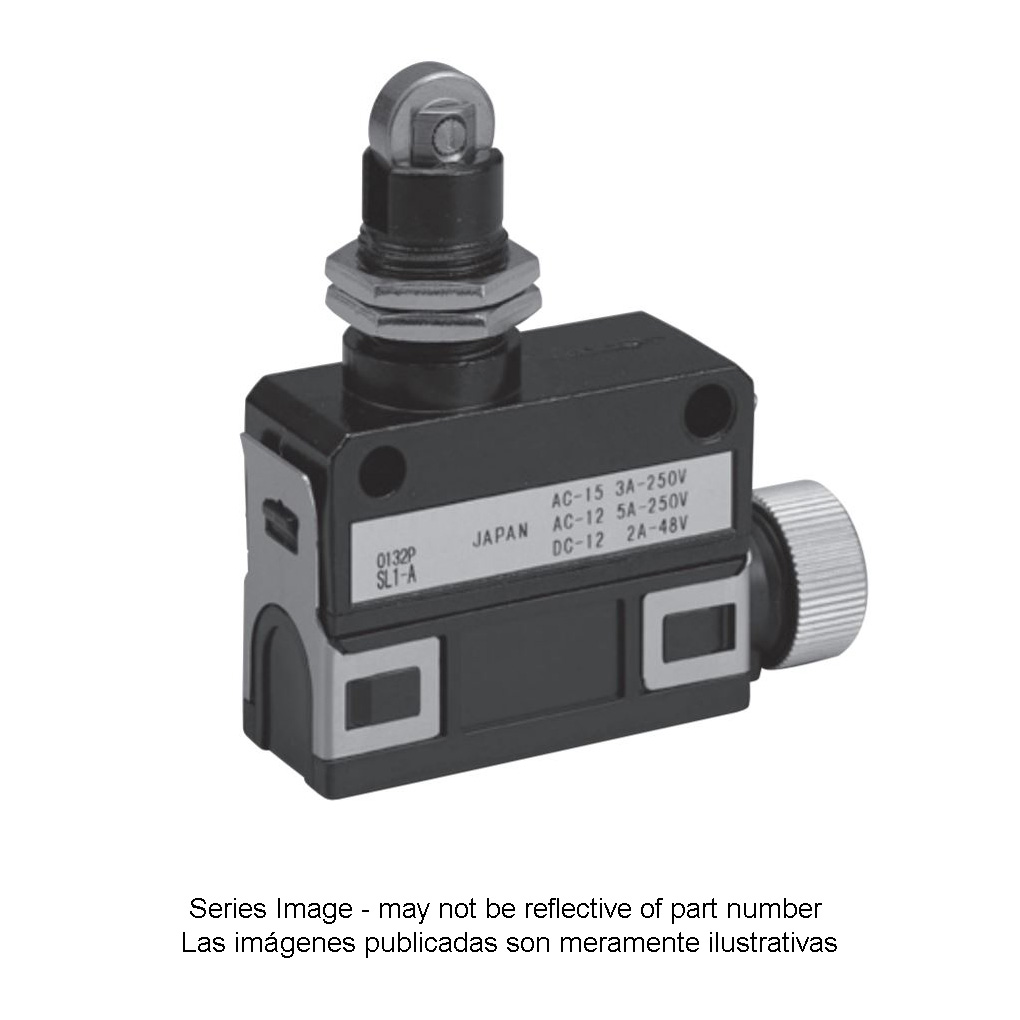

Limit Switch - General Purpose - Compact Horizonal (Rugged) - Roller plunger - Without connector, max. operating force 11.8 N, max. pretravel 1.5 mm, min. overtravel 3 mm, max. movement differential 0.1 mm, UL/CSA/CE/GB (ccc marking) certified

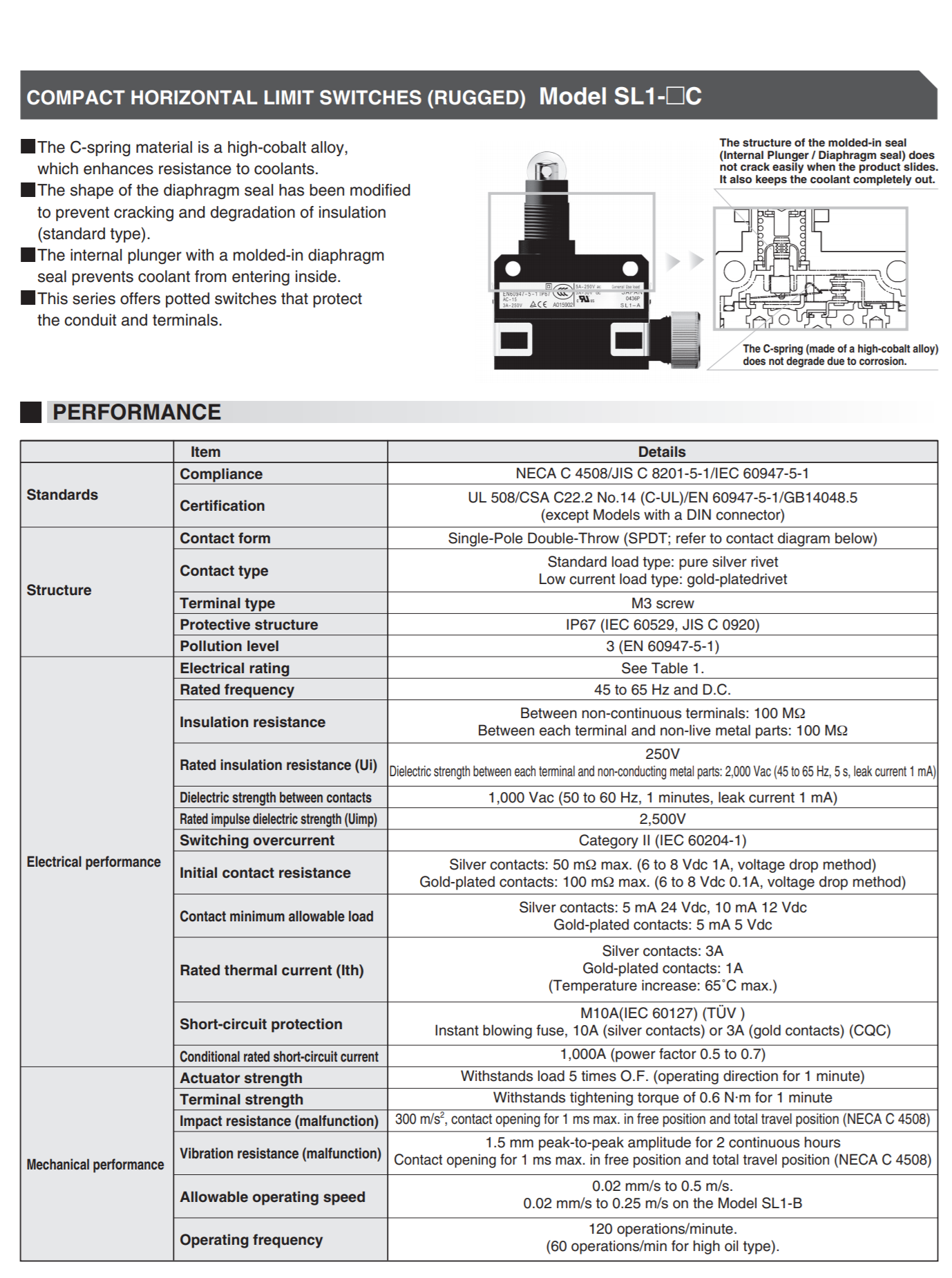

Azbil SL1-□□ series of General Purpose Compact Horizontal Limit Switches offers a robust long-life and maintenance-free design with a mechanical life of 20 million operations, owing to a 2 piece-spring mechanism. These maintenance-free switches have a superior seal: oil-resistant/immersion-proof type (JIS) and IP67 (IEC). O-ring and integral diaphragm seal are built in. The small, space-saving body can be tightly gang-mounted and have high sensitivity (movement differential = 0.1 mm). Contact form sing-pole double throw (SPDT). Contact type- standard load type: pure silver rivet, low current load type: gold-plate rivet, M3 screw terminal, UL/CSA/GB (CCC marking) certified models available. Rugged models also available.
