C35TC0UA2200

SKU C35TC0UA2200

Availability

Digital Controller - Single Loop Controller - SDC35 - Mask size 48 mm x 96 mm, panel mount, control output 1: current, control output 2: None, PV input universal, Power supply: AC model (100 to 240 Vac) 50/60 Hz, event relay output: 3 points, auxiliary output (current output), current transformer inputs:2 points, digital inputs: 4 points, RS-485 communication, (a current transformer is sold separately; when the control output is R1, the current transformer input is not applied. MFB input is applied), CE marking.

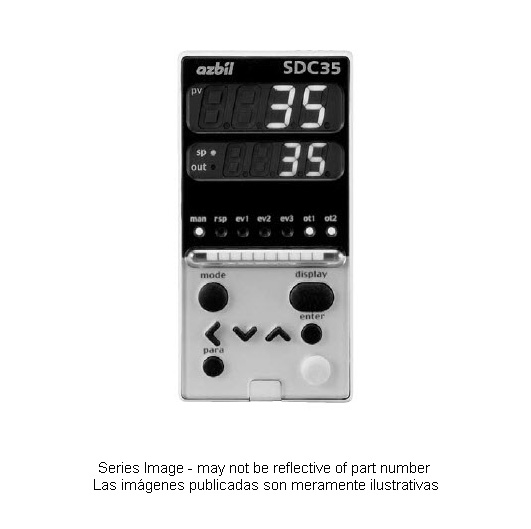

Azbil DigitroniK SDC35/36 is a single loop, compact digital controller featuring multi-range inputs and a PID control system using “RationalLOOP PID” (Ra-Pid) and “Just-FiTTER algorithms. Up to 2 control outputs are available depending on the model selectable from relay contact, voltage pulse, and current. ±0.3% FS accuracy. Sample cycle of 0.3 s. The input types can be changed among the thermocouple, RTD, current and voltage. The control method can be selected from any of the ON/OFF control, PID control, and self-tuning. Heat and cool control can be achieved using two control outputs and event outputs. The control output types available for selection are relay, voltage pulse, and current outputs. Event 3 points or 2 points (independent contact), CT input 2 points, DI 4 points, and RS-485 can be selected in combination. Personal computer loader option available makes it possible easily perform various settings, such as setup and parameter setting and easily achieve data logging. IEC and CE compliant.

C35TC0UA2200

SKU C35TC0UA2200

可用性

数字控制器-单回路控制器- SDC35 -掩模尺寸48mm × 96mm，面板安装，控制输出1:电流，控制输出2:无，PV输入通用，电源:交流型号(100 ~ 240vac) 50/ 60hz，事件继电器输出:3点，辅助输出(电流输出)，电流互感器输入:2点，数字输入:4点，RS-485通信，(电流互感器另售;当控制输出为R1时，不加电流互感器输入。应用MFB输入)，CE标志。

Azbil DigitroniK SDC35/36是一款单环紧凑型数字控制器，具有多范围输入和使用“RationalLOOP PID”(Ra-Pid)和“Just-FiTTER算法”的PID控制系统。根据继电器触点，电压脉冲和电流可选的模型，最多可提供2个控制输出。±0.3% FS精度。采样周期0.3 s。输入类型可以在热电偶、RTD、电流和电压之间改变。控制方式可以选择任意的ON/OFF控制、PID控制和自整定。冷热控制可以使用两个控制输出和事件输出来实现。可供选择的控制输出类型有继电器、电压脉冲和电流输出。事件3点或2点(独立接点)，CT输入2点，DI 4点，RS-485可组合选择。提供个人电脑加载选项，可以方便地执行各种设置，如设置和参数设置，并轻松实现数据记录。符合IEC和CE标准。
